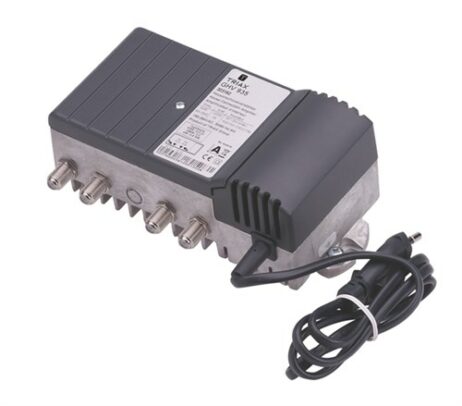

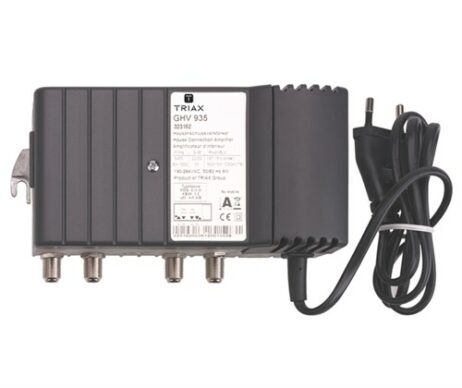

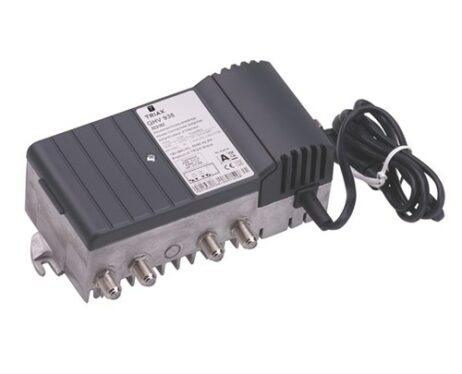

Loftnetsmagnari, 35dB - GHV935

Lýsing Triax GHV935 loftnetsmagnarinn er vandaður loftnetsmagnari sem að magnar 35dB. Hann þolir mest 105 dB. Bæklingur hér Output level CSO @ 60 dB IMD103 dBµV Output level CSO @ 60 dB IMD (42 ch) Slope 0/7 dB103/105 dBµV Output level CTB @ 60 dB IMD103 dBµV Output level CTB @ 60 dB IMD (42 ch) Slope0/7 dB103/105 dBµV Output level return path120 dBµV Frequency range47 – 1006, 85-1006 MHz Frequency range return path5-65 MHz Gain35 dB Gain forward – Interstage0/3/7/10 Gain return (@60 MHz) 24/30 Noise figure return path 5 dB Noise figure – forward (VHF I „on“) 6.5 Attenuation0…15 dB Attenuation – interstage0 / 6 Return loss – input (@ 40 MHz)>18 AC Supply voltage190…264 VAC Power Consumption (typ.) <9 W Class II RF connector – Test point input: bi-directional-20 dB RF connector – Test point output: directional-20 dB Connector Type F-female Housing protection class IP20 Weight (kg) 0.65 kg
