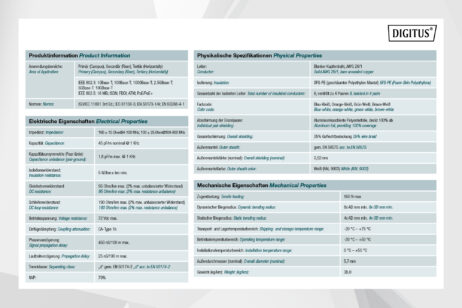

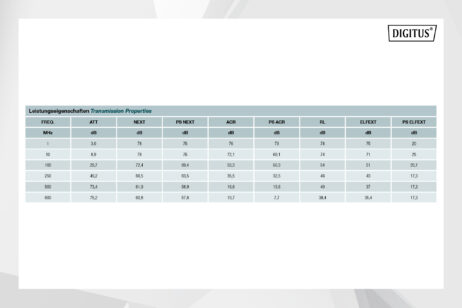

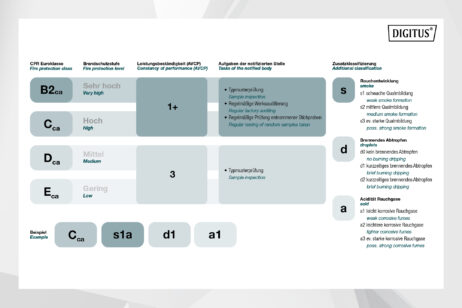

Lýsing Cat7 S-FTP kapall. Hér erum við að bjóða þennan kapal í 100 metra kassa. Þetta er AWG 23/1, 1200 MHz, LSZH-3 og er hvítur Nánar um DK-1743-VH Vottanir hér Description The Digitus® Cat.7 S/FTP installation cable features the following cable structure 4x2x AWG23/1 and reaches a transmission frequency of up to 1200 MHz. The halogen-free cable sheath complies with the IEC 60332-3-24 standard, FRNC-C, LSZH-3, and BauPVO Euroclass Dca. The cable is suitable for structured building cabling in secondary and tertiary areas. Compliant with ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1 standards. Technical details Conductor: Bare copper wire, AWG 23/1 System(s) of assessment and verification of constancy of performance: System 3 Insulation: SFS-PE (foamed polyethylene jacket) Total number of insulated conductors: 8, twisted into 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Shielding of the individual pairs: aluminum-laminated polyester film, covers 100% Overall shielding: copper braiding Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH Outer sheath thickness (nominal): 0.50 mm (Eca); 0.52 mm (Dca); 0.60 mm (Cca); 0.60 (B2ca) Color: Orange (RAL 2008) Mechanical properties: Strain relief: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Transport and storage temperature range: -20 °C to 75 °C Operating temperature range: -20 °C to 50 °C Installation temperature range: 0 °C to 50 °C Outer diameter simplex (nominal): 7.0 mm (Eca); 7.2 mm (Dca); 7.5 mm (Cca); 7.5 mm (B2ca) Weight (kg/km): 49.5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca) Electrical properties: Impedance: 100±15 Ohm @ 4 – 1000 MHz; 100±25 OHM @ 100-600 MHz Capacitance: 45pF/m nom. at 1KHz Capacitance: 40 pF/m nominal @ 1 KHz Insulation resistance: 5 GOhm x km min. DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance) Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance) Operating voltage: 72 Vdc max. Coupling attenuation: CA-Type 1b Phase delay: 450 nS/100 m max. Time delay: 10 nS/100 m max. Separation class: „d“ according to EN 50174-2 NVP: 79% Assortment: Twisted pair installation cable Length: 250 m Category: CAT 7 Color: orange CPR: Dca Coat: LSOH Shielding: S-FTP, pairs shielded in metal foil and braid Cable construction: 4 x 2 AWG 23/1, solid twisted pair Assortment: Twisted Pair Installation Cables Category: CAT 7 Shielding: S-FTP, pairs in metal foil and braid shielding CPR: Dca Length: 250 m Color: orange Jacket: LSOH Structure: 4 x 2 AWG 23/1, solid twisted pair
