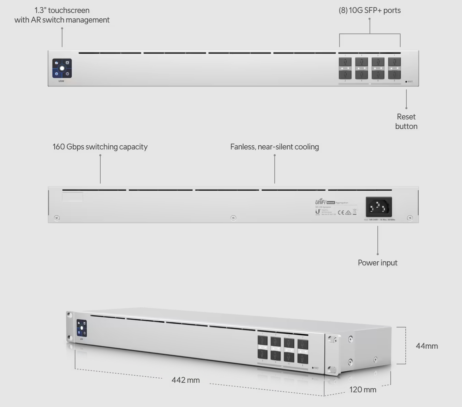

Lýsing The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP ports designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7″ depth, it’s easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. High-bandwidth core switching for maintaining maximum performance in large networks. Mechanical Dimensions 442.4 x 120 x 43.7 mm (17.4 x 4.7 x 1.7″) Weight Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (8) 10G SFP ports Total non-blocking throughput 80 Gbps Switching capacity 160 Gbps Forwarding rate 119.04 Mpps Power method Universal input, 100—240V AC, 50/60 Hz Power supply AC/DC, internal, 36W Supported voltage range 100—240V AC Max. power consumption 30W ESD/EMP protection Air: ± 16kV, contact: ± 12kV Max. number of supported SFP modules UACC-OM-MM-10G: 8 UACC-OM-SM-10G: 8 UACC-CM-RJ45-10G: 4 Services SMB Layer 2 GbE switch LCM display (1) 1.3″ LCM color touchscreen Button Factory reset Operating temperature -5 to 40° C (23 to 104° F) Operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC LEDs System Status SFP Link/activity Application Requirements UniFi Network Version 5.14.12 and later
