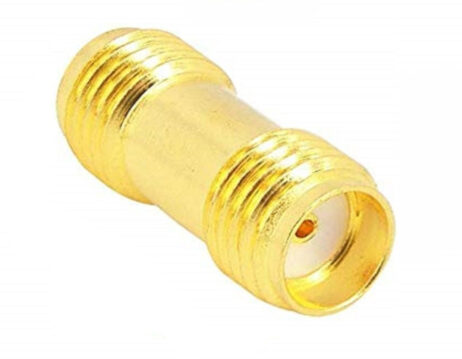

Lýsing SMA samtengi. Vönduð SMA Sería af tengjum Category Connectors, Interconnects Family Coaxial, RF – Adapters -SMA Series IN-Series Convert From (Adapter End) SMA Jack, female Pin Convert To (Adapter End) SMA Jack, female Pin Impedance 50 Ohm Style Straight Material Brass Plating Gold-plated Features – Mounting Type Free Hanging (In-line) Technical characteristics Temp.range……………….-65～ 165 (PE Cable -～ 85) Impedanec………………….50Ω Frequency Range…………..DC～12.4GHz(0～18GHz) Working Voltage…………..335V max Withstand Voltage………. 1000V rms Contact resistance Center Contact…………….≤3mΩ Outer Contact……………..≤2mΩ Insulation resistance…….≥5000 mΩ Insertion loss …………….≥0.15 dB/6GHz VSWR Straight……………≤1.10 0.002f ≤1.05 0.001f Right angle ………….≤1.20 0.003f ≤1.10 0.001f Durability(mating)………..≥ 500 (cycles) MATERIAL & PLATING shell brass goldplated inner conductor beryllium or tin brass goldplated insulator PTFE crimping suite copper alloy nicked or goldplated o-ring sealing 6146 silastic
