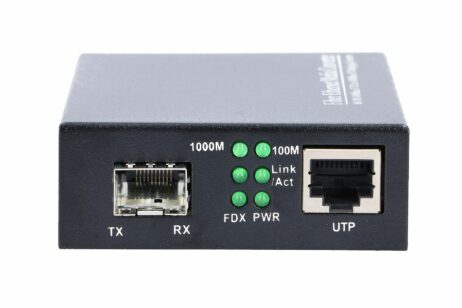

Lýsing Gigabit Ethernet Media Converter Extralink Sedir is a media converter that converts the transmission of media between FTP/UTP copper cables and SFP (Small Form-Factor Pluggable) optical transmitter-receiver. The media converter from Extralink is designed to meet the huge needs of Ethernet deployment and allows it to be extended via fiber optic cable over a maximum distance of 80 km (depending on the SFP module used). Installation and operation procedures are very simple. The device status can be monitored locally by a set of diagnostic LEDs on the front panel. Features: Easy installation and use Easy problem detection Plug-and-play Conversion from 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Jumbo Frame support (64-9216 bytes) Conversion between different transmission speeds and types of transmission media Can be installed in a 2U 14/16 slot housing Ethernet port authentication (Half/Full Duplex) Auto MDI/MDI-X support The Extralink Sedir model is a good substitute for TP-LINK MC220L media converter. SPECIFICATION Basic technical parameters Standards IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab Interfaces 1 x RJ-45 port and 1 x SFP slot Plug-and-play Yes Auto MDI/MDI-X support Yes Dimensions 94 x 70.6 x 26.5 mm
