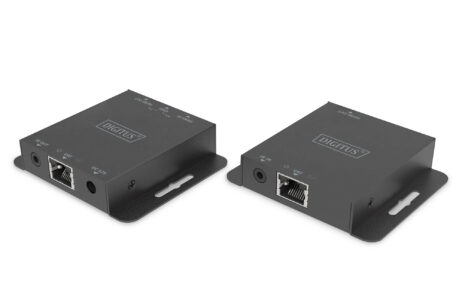

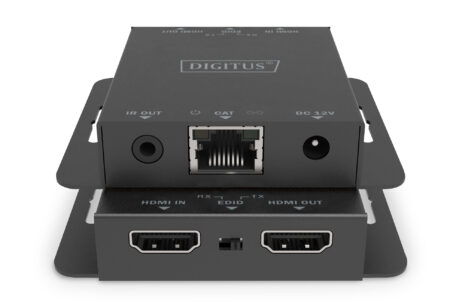

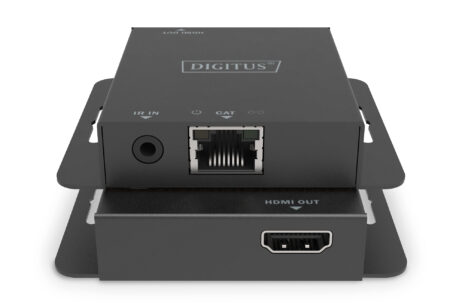

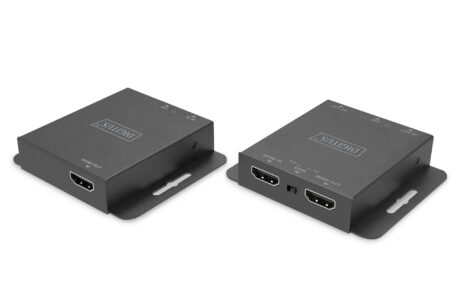

Lýsing Description The HDMI Extender Set extends Full HD AV signals over a distance of up to 70 m, 4K/30Hz signals can be extended over a distance of up to 40 m using a CAT6 (or higher) network cable. The transmitter unit features an HDMI loop out for connecting a local monitor. Thanks to PoC (Power over Cable), only the transmitter needs to be supplied with power. IR transmission makes it possible to conveniently control the signal source using remote control from the receiver (output screen). Other features include an EDID copy function of the output screen on the receiver or on the HDMI loop out, which can be selected using the changeover switch. Technical details Extends HDMI AV signals to a distance of up to 70 m Supports resolutions of up to 4K/30 Hz, 4:4:4 Supports CAT 6, CAT 6A, CAT 7, CAT 8 network cable PoC (Power over Cable) – Only the transmitter requires an external power adapter HDMI loop-out / output – Connection of local monitor to the source device EDID copy function of the output screen on the receiver or on the HDMI loop out HDMI 1.4, HDCP 1.4, DVI 1.0 IR transmission (unidirectional) Video bandwidth: 10.2 Gbps Transmitter unit connections: 1x HDMI input (4K/30Hz) – Connection signal source 1x HDMI loop-out / output – Connection of local monitor (source device) 1x RJ45 output – Connection CAT transmission cable 1x IR output – Connection of IR transmitter 1x Power adapter input (DC 12V/1A) – Connection for external power adapter 1x EDID changeover switch Receiver unit connections: 1x HDMI output (4K/30Hz) – Connection output device 1x RJ45 input – Connection CAT transmission cable 1 x IR input – Connection of IR receiver Suitable for wall mounting ESD protection Operating temperature: 0-40° Power consumption: Transmitter approx. approx. 1.86 W, receiver approx. 0.87 W Housing: Metal Dimensions (1 unit): L 7.9 x W 6.9 x H 1.65 cm Weight (1 unit): 130 g Color: black Attributes KVM: no PoE (Power over Ethernet): yes Package content 1x Transmitter unit 1x Receiver unit 1x IR transmission cable (1.5 m) 1x IR receiver cable (1.5 m) 1x Power adapter (DC 12V/1A, 1.15 m) 1x User manual
